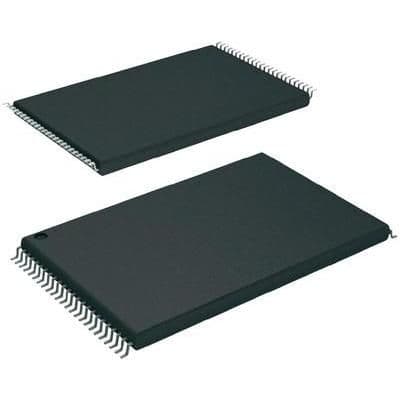

4Mb Flash Memory, 256K x 16 words, featuring 70ns access time. This surface mount component operates with a 2.7V to 3.6V supply voltage and a 3.3V nominal voltage. The TSOP package offers a parallel, asynchronous interface. It supports a top boot block configuration and is RoHS compliant.
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39VF402C-70-4I-EKE technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 1b |
| Boot Block | Top |
| Package/Case | TSOP |
| Density | 4Mb |
| Height | 1.05mm |
| Interface | Parallel |
| Length | 18.5mm |
| Max Operating Temperature | 85°C |
| Memory Size | 4Mb |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Words | 256000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SST39 MPF™ |
| Supply Current | 18mA |
| Sync/Async | Asynchronous |
| Width | 12.2mm |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
