Technical Specifications

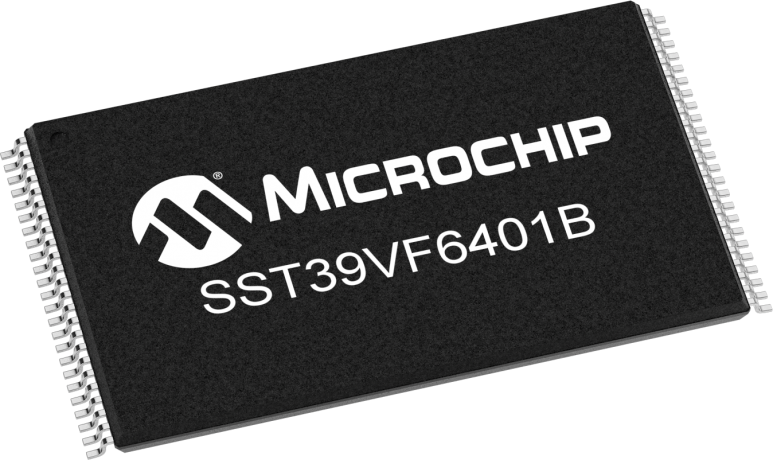

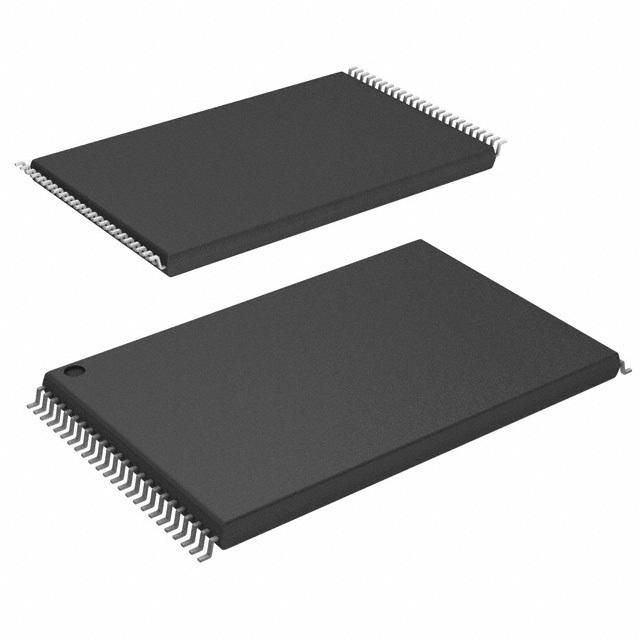

Microchip SST39VF6401B-70-4C-EKE-T technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
22b
Package/Case
TSOP
Data Bus Width
16b
Density
64Mb
Interface
Parallel
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF6401B-70-4C-EKE-T Datasheet
Download the complete datasheet for Microchip SST39VF6401B-70-4C-EKE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
