8Mb NOR Flash memory with a 16-bit data bus width and 19-bit address bus. Features 70ns access time, 2.7V to 3.6V operating voltage, and parallel interface. This surface-mount component is housed in a TSOP-48 package, measuring 18.5mm x 12.2mm x 1.05mm, and is RoHS compliant. Ideal for embedded systems requiring non-volatile data storage.
Frequency5MHz
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39VF801C-70-4C-EKE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
19b
Boot Block
Bottom
Package/Case
TSOP
Data Bus Width
16b
Density
8Mb
Frequency
5MHz
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
18.5mm
Max Operating Temperature
70°C
Memory Size
8Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
12.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF801C-70-4C-EKE Datasheet
Download the complete datasheet for Microchip SST39VF801C-70-4C-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

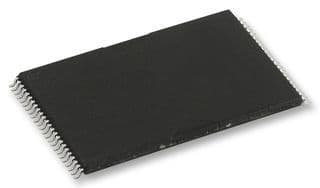

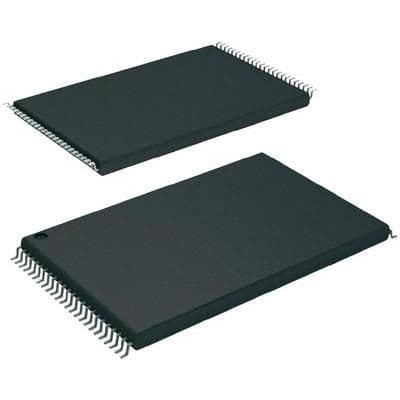

Product Images
