Dual positive edge-triggered D flip-flop, featuring complementary outputs and a 1.1GHz maximum frequency. This surface mount logic IC operates with differential inputs and ECL technology, offering a propagation delay of 0.72ns and a turn-on delay time of 500ps. It supports a supply voltage range of -3V to -5.5V and provides ±50mA output current. Packaged in SOIC, this lead-free and RoHS compliant component is ideal for high-speed digital applications.
Frequency1.1GHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Microchip SY100EL29VZG-TR technical specifications.
General
| Package/Case | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 1.1GHz |
| High Level Output Current | -50mA |
| Input Type | DIFFERENTIAL |
| Lead Free | Lead Free |
| Low Level Output Current | 50mA |
| Max Frequency | 1.1GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | -5.5V |
| Min Supply Voltage | -3V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.72ns |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 100EL |
| Supply Voltage-Nom | 5.5V |
| Technology | ECL |
| Turn-On Delay Time | 500ps |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY100EL29VZG-TR Datasheet
Download the complete datasheet for Microchip SY100EL29VZG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

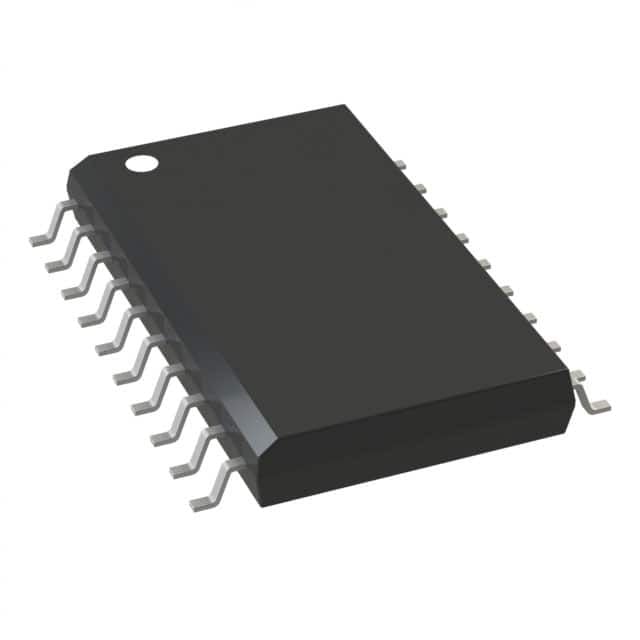

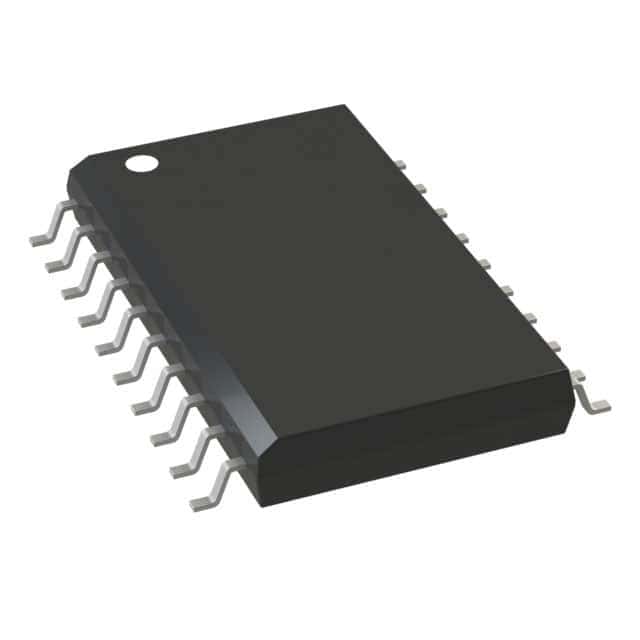

Product Images
