PackageSOIC
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY100ELT23ZG-TR technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
High Level Output Current
-15mA
Logic Function
Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
1
Operating Supply Voltage
5V
Output Type
TTL
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
3ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
100ELT
Supply Current
30mA
Technology
ECL
Turn-On Delay Time
3.5ns
Compliance
RoHS
Compliant
Datasheet
Microchip SY100ELT23ZG-TR Datasheet
Download the complete datasheet for Microchip SY100ELT23ZG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

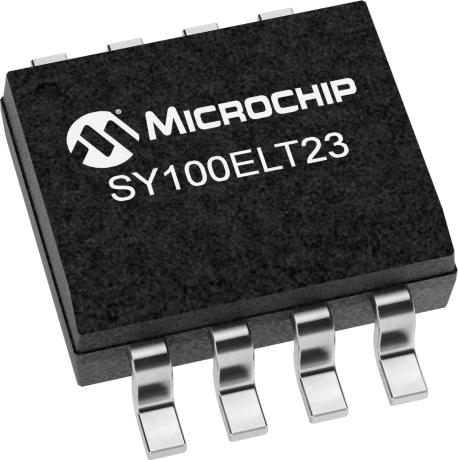

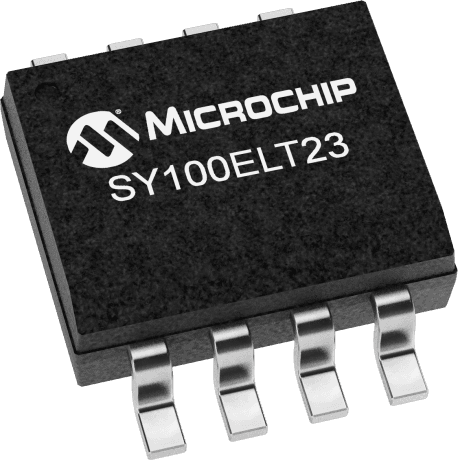

Product Images
