High-speed 5-output clock buffer/driver with 2 differential inputs, operating up to 2GHz. Features LVPECL input and differential mode of operation, with a propagation delay of 355ps. This surface mount component is housed in a 20-pin TSSOP package and operates within a supply voltage range of 2.37V to 5.5V. RoHS compliant and lead-free, it offers non-inverting polarity and a wide operating temperature range of -40°C to 85°C.
Frequency2GHz
PackageTSSOP
Current68mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY100EP14UK4G technical specifications.
General
| Package/Case | TSSOP |
| Height | 1.1mm |
| Input | LVPECL |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Frequency | 2GHz |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 82mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.37V |
| Mode of Operation | DIFFERENTIAL |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 5 |
| Number of Outputs | 5 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 355ps |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 100EP, Precision Edge®, ECL Pro® |
| Supply Current | 68mA |
| Supply Voltage-Nom | 5.5V |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY100EP14UK4G Datasheet
Download the complete datasheet for Microchip SY100EP14UK4G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

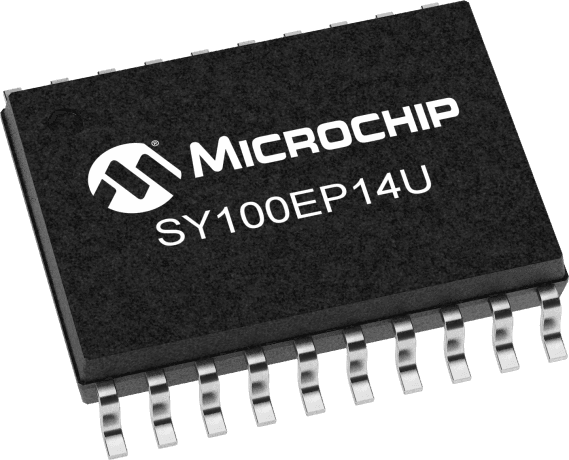

Product Images
