2-channel unidirectional LVPECL to LVTTL/LVTTL to LVPECL translator IC. Features a 275MHz maximum operating frequency and 2ns propagation delay. Operates from a 3V to 3.6V supply voltage with a typical 3.3V operating supply. Offers -3mA high-level output current and 24mA low-level output current. Packaged in an 8-pin MSOP, this surface-mount component is lead-free and RoHS compliant.
PackageMSOP
Current22mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY100EPT28LKG technical specifications.
General
Package/Case
MSOP
Channel Type
Unidirectional
High Level Output Current
-3mA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
1
Operating Frequency-Max
275MHz
Operating Supply Voltage
3.3V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
2ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
100EPT
Supply Current
22mA
Technology
ECL
Turn-On Delay Time
2.5ns
Compliance
RoHS
Compliant
Datasheet
Microchip SY100EPT28LKG Datasheet
Download the complete datasheet for Microchip SY100EPT28LKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

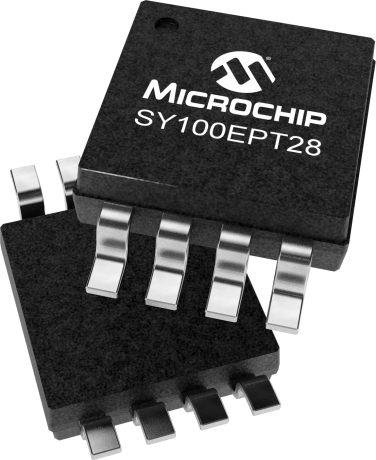

Product Images
