2-channel unidirectional translator for CML, LVPECL, and PECL to LVDS conversion. Features a 1.5Gbps data rate and 750MHz operating frequency with a 0.7ns propagation delay. Operates from a 3V to 5.7V supply voltage and offers a high level output current of -4mA and low level output current of 4mA. This surface mount component is housed in a 10-pin MSOP package, measuring 3mm x 3mm x 1.016mm, and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageMSOP
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY55855VKG technical specifications.
General
Package/Case
MSOP
Channel Type
Unidirectional
Data Rate
1.5Gbps
Height
1.016mm
High Level Output Current
-4mA
Lead Free
Lead Free
Length
3mm
Logic Function
Translator
Low Level Output Current
4mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.7V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
1
Operating Frequency-Max
750MHz
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
0.7ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
SY55
Supply Current
30mA
Technology
ECL
Turn-On Delay Time
700ps
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY55855VKG Datasheet
Download the complete datasheet for Microchip SY55855VKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

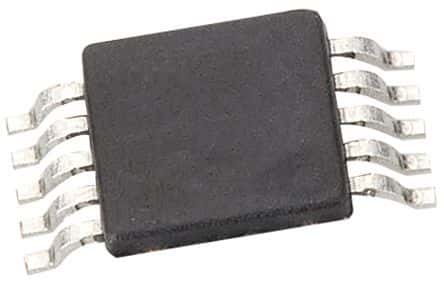

Product Images
