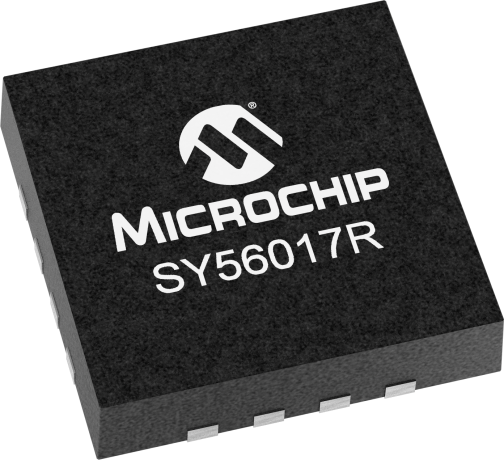

The SY56017RMG is a surface mount clock buffer with a maximum operating frequency of 4.5GHz and a propagation delay of 210ps. It operates over a temperature range of -40°C to 85°C and is powered by a nominal supply voltage of 2.625V. The device is RoHS compliant and available in a lead-free QFN-16 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SY56017RMG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Input | CML |
| Lead Free | Lead Free |
| Max Frequency | 4.5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mode of Operation | DIFFERENTIAL |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Propagation Delay | 210ps |
| Quiescent Current | 21mA |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Voltage-Nom | 2.625V |
| RoHS | Compliant |
