High-performance clock fanout buffer with 8 outputs, designed for 1:8 signal distribution. Operates at frequencies up to 4GHz with a low propagation delay of 260ps and turn-on delay of 0.33ns. Features a CML input and supports a supply voltage range of 2.375V to 3.6V, with a nominal 3.3V. This surface mount component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Frequency4GHz
Current190mA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Microchip SY58032UMG technical specifications.
General
| Frequency | 4GHz |
| Height | 0.8mm |
| Input | CML |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 250mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 8 |
| Number of Outputs | 16 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 260ps |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Current | 190mA |
| Supply Voltage-Nom | 3.3V |
| Turn-On Delay Time | 0.33ns |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY58032UMG Datasheet
Download the complete datasheet for Microchip SY58032UMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

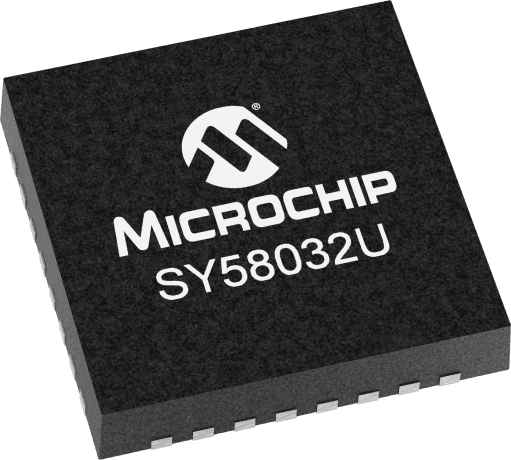

Product Images
