Programmable delay line IC offering 1024 taps for precise timing control up to 14.8ns. Features a maximum operating frequency of 1.5GHz and a propagation delay of 4200ps. Operates within a supply voltage range of 2.375V to 3.6V, with a nominal supply voltage of 3.6V and a supply current of 220mA. Designed for surface mount applications with a 32-pin QFN EP package. Suitable for operation across a wide temperature range from -40°C to 85°C.
Frequency1.5GHz
Current220mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89295UMG technical specifications.
General
Depth
5mm
Height
0.84mm
High Level Output Current
40uA
Lead Free
Lead Free
Length
5mm
Low Level Output Current
-300uA
Max Frequency
1.5GHz
Max Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Circuits
1
Number of Taps/Steps
1024
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
4200ps
Radiation Hardening
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Current
220mA
Supply Voltage-Nom
3.6V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89295UMG Datasheet
Download the complete datasheet for Microchip SY89295UMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

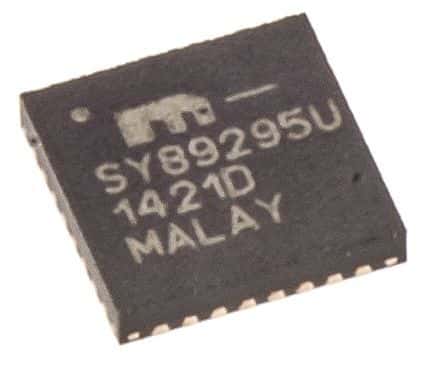

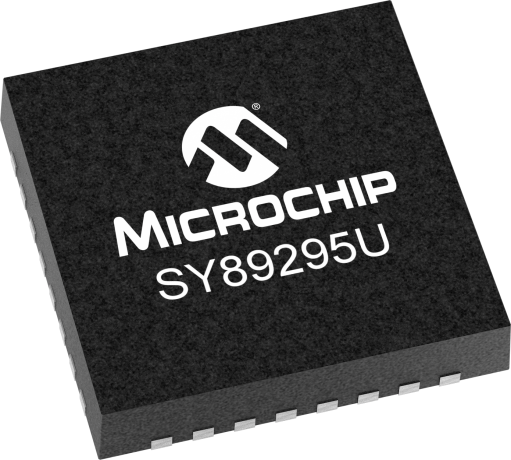

Product Images
