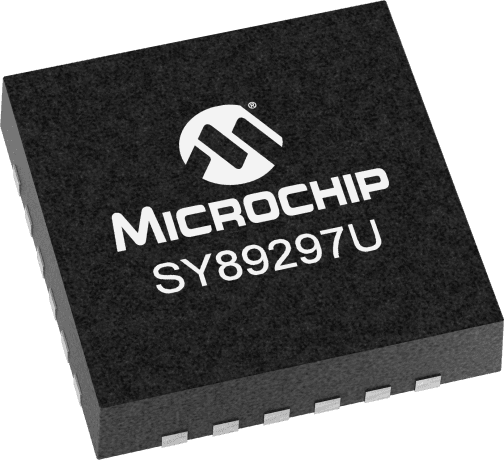

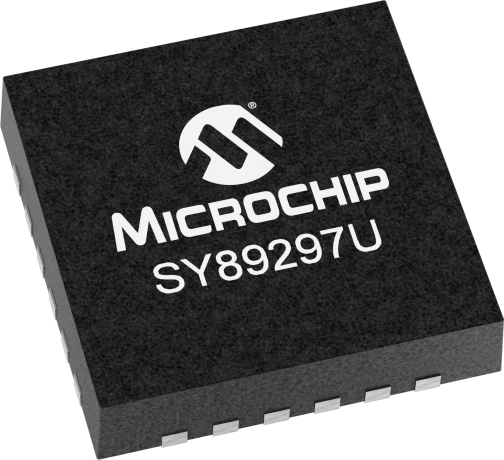

This Precision Edge delay line is available in a QFN package with a 4mm footprint. It operates over a temperature range of 0 to 75°C and is supplied at 2.5V. The device is RoHS compliant and lead free, packaged in a rail or tube configuration with 75 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SY89297UMH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Depth | 4mm |
| Height | 0.83mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Taps/Steps | 1024 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Voltage-Nom | 3.3V |
| Width | 4mm |
| RoHS | Compliant |
