Dual 2-to-1 multiplexer IC featuring complementary outputs. This integrated circuit operates with a 3V to 3.6V supply voltage, ideal for 3.3V systems. Designed for surface mount applications, it offers two independent 2-to-1 multiplexing circuits. The component supports differential mode of operation and is RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89543LMG-TR technical specifications.
General
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mode of Operation | DIFFERENTIAL |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SY89 |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY89543LMG-TR Datasheet
Download the complete datasheet for Microchip SY89543LMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

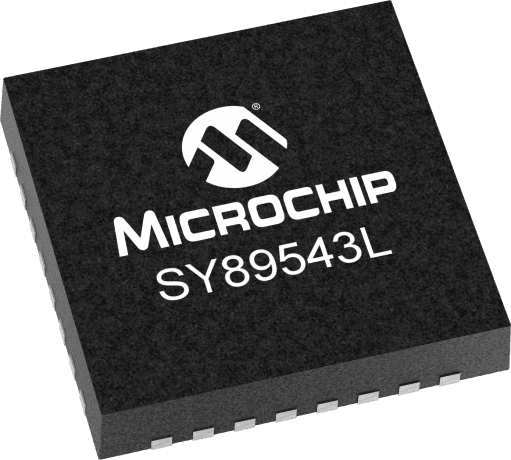

Product Images
