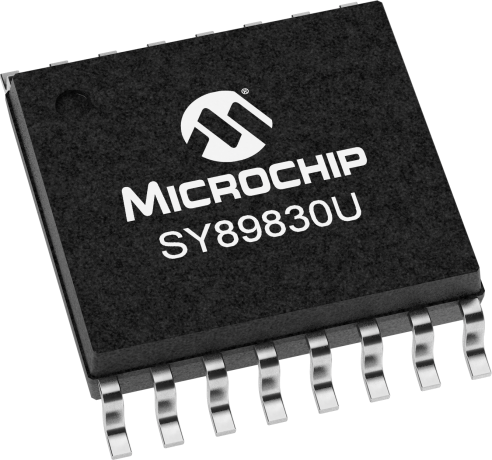

High-performance 4-output, 2-input clock multiplexer operating up to 2.5GHz. Features differential LVPECL inputs and a 1:4 fanout capability. This surface-mount integrated circuit is housed in a 16-pin TSSOP package, measuring 5mm x 4.4mm x 1.1mm. It offers a wide operating supply voltage range from 2.375V to 5.5V and a maximum supply current of 75mA. Designed for operation between -40°C and 85°C, this RoHS compliant component boasts a propagation delay of 0.45ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SY89830UK4G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Frequency | 2.5GHz |
| Height | 1.1mm |
| Input | LVPECL |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 2.5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 75mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.375V |
| Mode of Operation | DIFFERENTIAL |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 4 |
| Package Quantity | 94 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.45ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Voltage-Nom | 5V |
| Width | 4.4mm |
| RoHS | Compliant |
