High-performance clock fanout buffer with 8 outputs, designed for 1:4 clock distribution. Features a 2GHz maximum operating frequency and a low propagation delay of 470ps. Operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. Packaged in a 16-pin QFN (3mm x 3mm x 0.85mm) for surface mounting. RoHS compliant and lead-free.
Frequency2GHz
PackageQFN
Current75mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89833ALMG technical specifications.
General
Package/Case
QFN
Duty Cycle
53%
Frequency
2GHz
Height
0.85mm
Input
CML
Lead Free
Lead Free
Length
3mm
Max Frequency
2GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Outputs
8
Operating Frequency-Max
2GHz
Operating Supply Voltage
3.3V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
470ps
Quiescent Current
100mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Current
75mA
Turn-On Delay Time
0.47ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89833ALMG Datasheet
Download the complete datasheet for Microchip SY89833ALMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

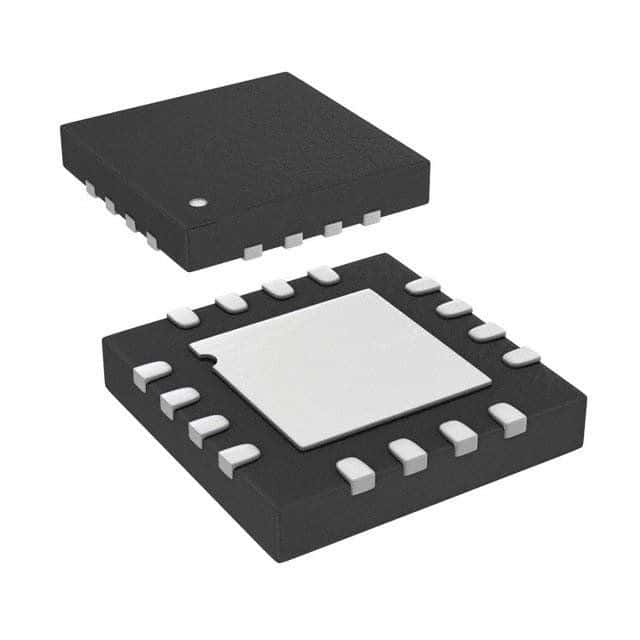

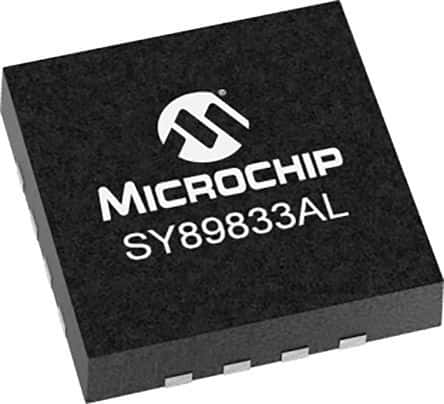

Product Images
