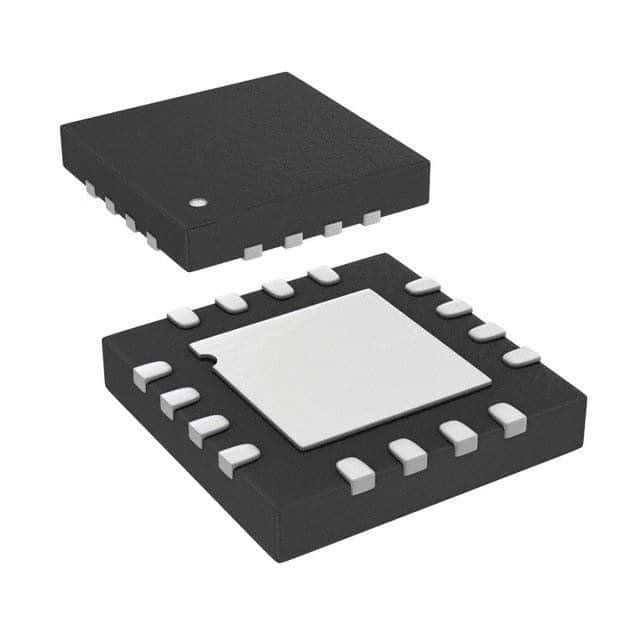

High-performance clock fanout buffer, featuring 8 outputs from a single CML input. Operates at a maximum frequency of 2GHz with a propagation delay of 600ps and a turn-on delay of 0.6ns. Designed for surface mount applications in a QFN package, this RoHS compliant component supports a supply voltage range of 3V to 3.6V. Ideal for demanding clock distribution needs.
Sign in to ask questions about the Microchip SY89833LMG-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip SY89833LMG-TR technical specifications.
| Package/Case | QFN |
| Input | CML |
| Lead Free | Lead Free |
| Max Frequency | 2GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 8 |
| Operating Frequency-Max | 2GHz |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 600ps |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Current | 75mA |
| Turn-On Delay Time | 0.6ns |
| RoHS | Compliant |
Download the complete datasheet for Microchip SY89833LMG-TR to view detailed technical specifications.
