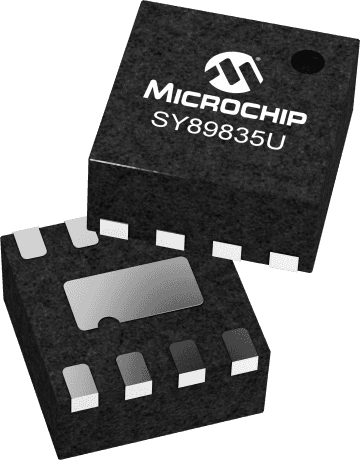

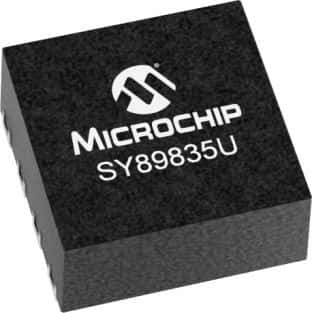

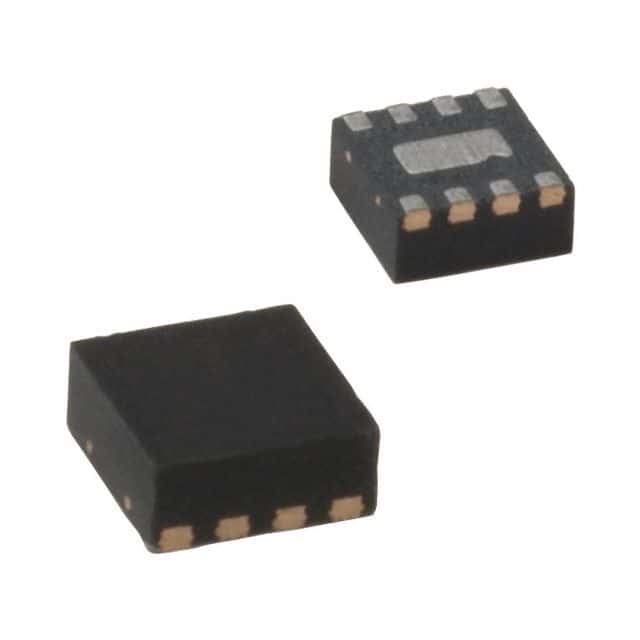

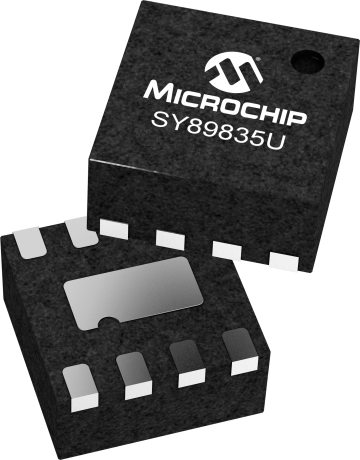

Low skew clock driver with 2 true outputs, supporting data rates up to 3200Mbps and a maximum frequency of 3GHz. Features LVDS input and operates from a 2.375V to 2.625V supply voltage range. This surface mount integrated circuit offers a propagation delay of 300ps and a turn-on delay time of 0.5ns. Designed for precision timing applications, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SY89835UMG-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip SY89835UMG-TR technical specifications.
| Data Rate | 3200Mbps |
| Height | 0.8mm |
| Input | LVDS |
| Length | 2mm |
| Max Frequency | 3GHz |
| Max Input Voltage | 4.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Drivers | 2 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 2 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 2.5V |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 300ps |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Current | 50mA |
| Supply Voltage-Nom | 2.625V |
| Turn-On Delay Time | 0.5ns |
| Width | 2mm |
| RoHS | Compliant |
