Positive fixed output 3.3V LDO regulator with 50mA output current. Features 85mV dropout voltage and 2.5% accuracy. Operates from 2.7V to 6V input voltage, with a maximum operating temperature of 125°C. Packaged in a 5-pin SOT-23 for surface mounting, supplied on tape and reel. RoHS compliant.
PackageSOT-23
Current Rating50mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1014-3.3VCT713 technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-23
Current Rating
50mA
Dropout Voltage
85mV
Height
0.051inch
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
318mW
Power Supply Rejection Ratio (PSRR)
64dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1014-3.3VCT713 Datasheet
Download the complete datasheet for Microchip TC1014-3.3VCT713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

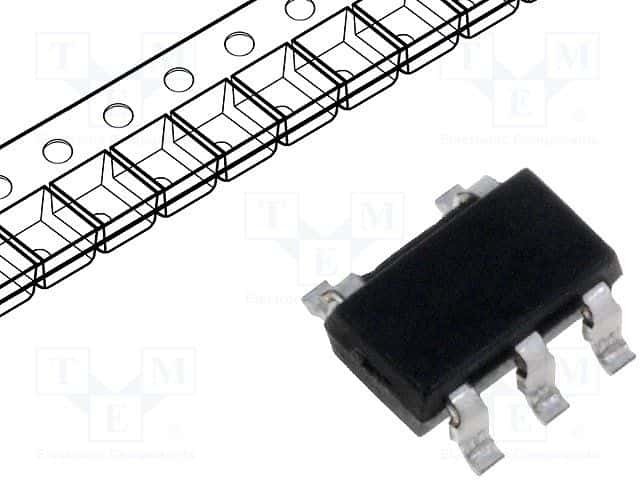

Product Images
