1.8V fixed positive LDO regulator, offering 100mA output current with a 180mV dropout voltage. Features a 2.5% accuracy and a maximum input voltage of 6V. Supplied in a 5-pin SOT-23 surface mount package, operating from -40°C to 125°C. This RoHS compliant component is ideal for power management applications.
PackageSOT-23
Voltage1.8V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1015-1.8VCT713 technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-23
Dropout Voltage
180mV
Height
0.051inch
Lead Free
Lead Free
Lead Pitch
0.95mm
Length
0.122inch
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
318mW
Power Supply Rejection Ratio (PSRR)
64dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
3.1mm
Voltage
1.8V
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1015-1.8VCT713 Datasheet
Download the complete datasheet for Microchip TC1015-1.8VCT713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

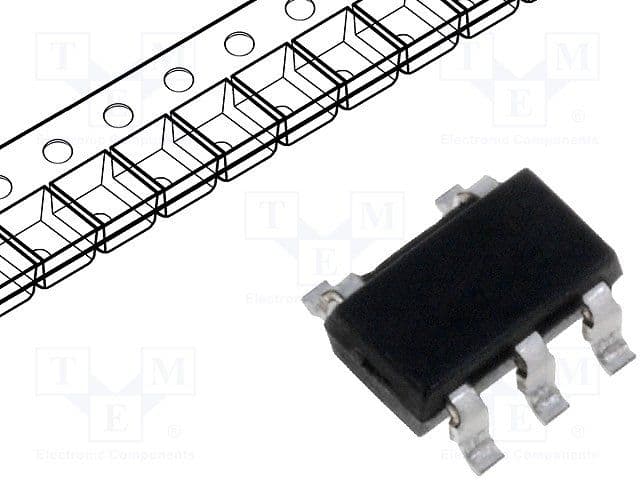

Product Images
