A positive fixed linear voltage regulator (LDO) IC designed for surface mounting in a SOT-23-5 package. Features a 2.85V output voltage with 0.5% accuracy and a low dropout voltage of 180mV. Operates with a maximum input voltage of 6V and provides up to 100mA output current. Offers a Power Supply Rejection Ratio (PSRR) of 64dB and a quiescent current of 50µA. Suitable for a wide operating temperature range from -40°C to 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1015-2.85VCT713 technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | SOT-23-5 |
| Dropout Voltage | 180mV |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Min Output Voltage | 2.85V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 2.85V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 64dB |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC1015-2.85VCT713 Datasheet
Download the complete datasheet for Microchip TC1015-2.85VCT713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

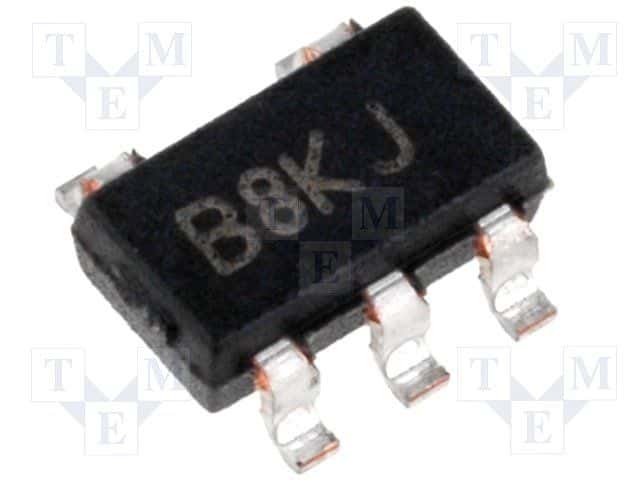

Product Images
