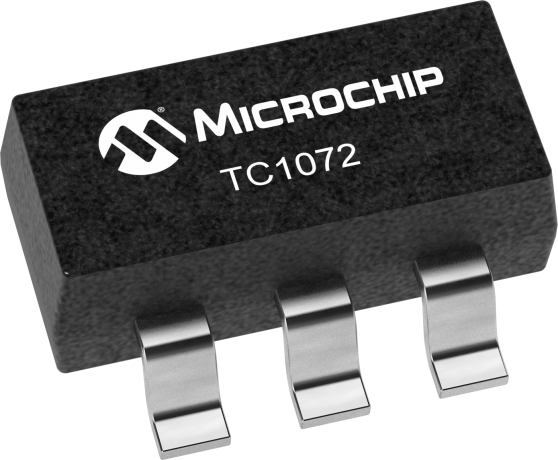

The TC1072-2.5VCH713 is a 2.5V fixed output linear voltage regulator with an output current of 50mA. It is packaged in a SOT-23-6 plastic package and is RoHS compliant. The device operates over a temperature range of -40°C to 125°C and has a dropout voltage of 85mV. It is suitable for use in a variety of applications requiring a stable 2.5V output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC1072-2.5VCH713 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.5% |
| Package/Case | SOT-23-6 |
| Dropout Voltage | 85mV |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 50mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip TC1072-2.5VCH713 to view detailed technical specifications.
