Surface mount DC/DC controller and regulator, featuring a 200 kHz switching frequency and an inverting logic function. This integrated circuit operates with a supply voltage range of 2.4V to 5.5V, supporting a maximum input voltage of 5.5V. It delivers a single, adjustable negative output voltage from -2.4V to -5.5V, with a maximum output current of 100mA and a maximum output power of 470mW. Packaged in an SOIC-8 case, this RoHS compliant component is designed for reliable performance across an operating temperature range of -40°C to 85°C.
Frequency200kHz
PackageSOIC
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC1121EOA technical specifications.
General
Package/Case
SOIC
Frequency
200kHz
Lead Free
Lead Free
Logic Function
Inverting
Max Input Voltage
5.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
-5.5V
Min Output Voltage
-2.4V
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of Outputs
1
Output Current
100mA
Output Power
470mW
Output Type
Adjustable
Output Voltage
-5.5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1121EOA Datasheet
Download the complete datasheet for Microchip TC1121EOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

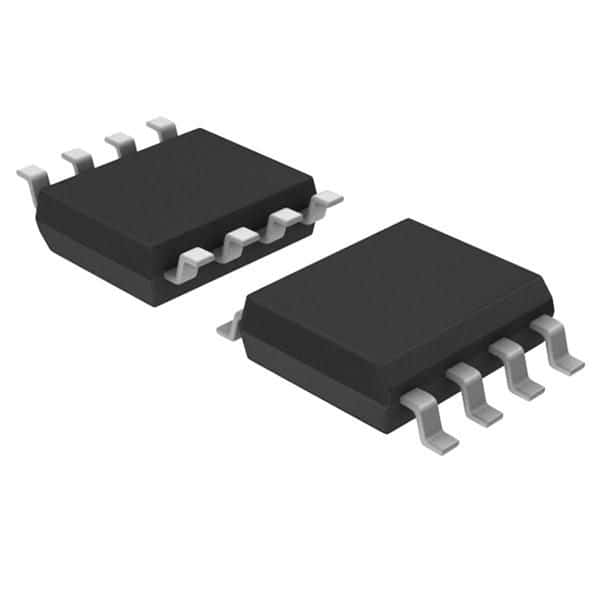

Product Images
