1-channel power supply management circuit for surface mount applications. Features a 4V to 5.5V operating supply voltage range with a typical 5V operation. Monitors a single voltage with an overvoltage threshold of 4.49V and undervoltage threshold of 4.25V. Includes active high/active low reset with a 250ms reset timeout and an integrated watchdog timer. Operates within a -40°C to 85°C temperature range with a low quiescent current of 50uA and a maximum supply current of 200uA. Packaged in a 16-pin SOIC plastic package.
PackageSOIC
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1232EOE technical specifications.
General
| Package/Case | SOIC |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 200uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 200uA |
| Operating Supply Voltage | 5V |
| Overvoltage Threshold | 4.49V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Quiescent Current | 50uA |
| Reset | Active High/Active Low |
| Reset Timeout | 250ms |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Threshold Voltage | 4.62V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC1232EOE Datasheet
Download the complete datasheet for Microchip TC1232EOE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

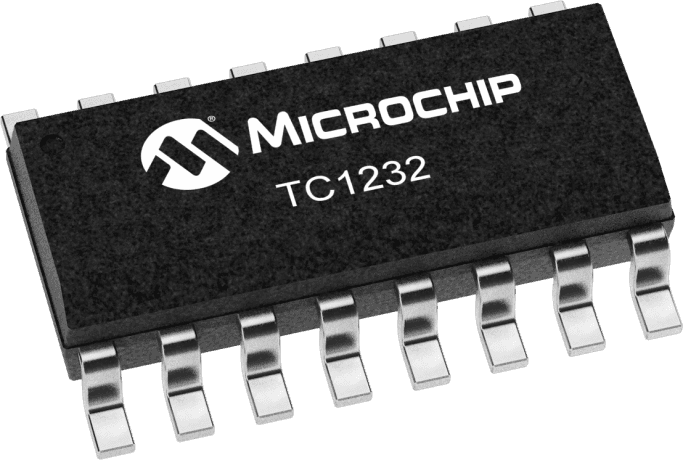

Product Images
