Microchip
TC1301A-AAAVMF
DUAL DLO W/MICROCONTROLLER WITHOUT RESET FUNCTION, -40C to +125C, 8-DFN, TUBE
PackageDFN EP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1301A-AAAVMF technical specifications.
General
Accuracy
0.5%
Package/Case
DFN EP
Input Bias Current
58uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
2.63V
Mount
Surface Mount
Number of Outputs
2
Number of Regulators
2
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
120
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
180uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip TC1301A-AAAVMF Datasheet
Download the complete datasheet for Microchip TC1301A-AAAVMF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

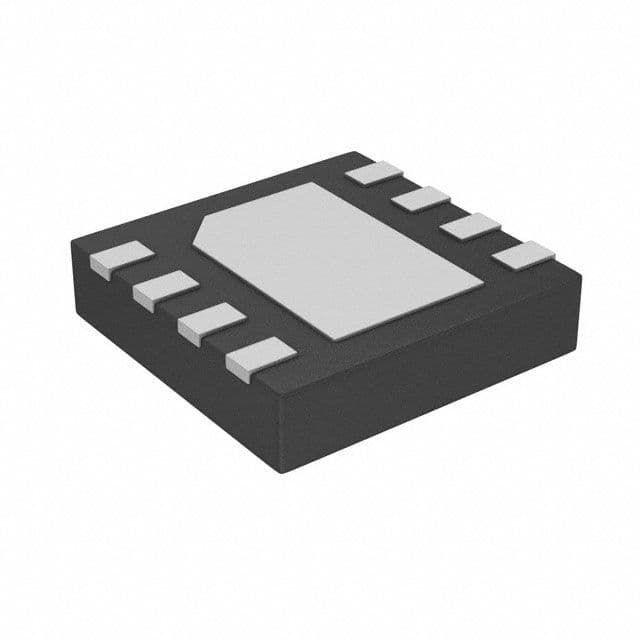

Product Images
