The TC1303C-PI0EMFTR is a dual output DC/DC controller from Microchip, packaged in a DFN EP surface mount package. It operates over a temperature range of -40°C to 85°C and provides two output voltages: 1.8V and 2.5V. The device is capable of delivering up to 500mA of output current. It is compliant with RoHS regulations and is available in tape and reel packaging.
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1303C-PI0EMFTR technical specifications.
General
| Package/Case | DFN EP |
| Height | 0.88mm |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 500mA |
| Output Voltage | 800mV |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC1303C-PI0EMFTR Datasheet
Download the complete datasheet for Microchip TC1303C-PI0EMFTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

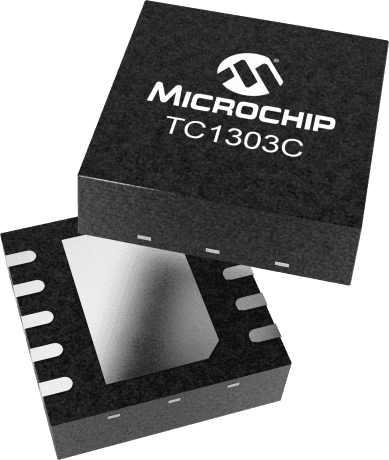

Product Images
