10-bit digital-to-analog converter (DAC) with a single channel and serial input. Features a 10µs settling time, 300µV input offset voltage, and ±1 LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply voltage, with an output voltage up to 10V. Interface options include I2C and 2-wire serial communication. Packaged in an 8-pin MSOP (0.95mm height) for surface mounting, this lead-free and RoHS-compliant component is suitable for applications operating between -40°C and 85°C.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1321EUA technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Input Offset Voltage (Vos)
300uV
Integral Nonlinearity (INL)
4LSB
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Type
Voltage
Output Voltage
10V
Package Quantity
100
Packaging
Rail/Tube
Resolution
10b
RoHS Compliant
Yes
Settling Time
10us
Supply Type
Single
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1321EUA Datasheet
Download the complete datasheet for Microchip TC1321EUA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

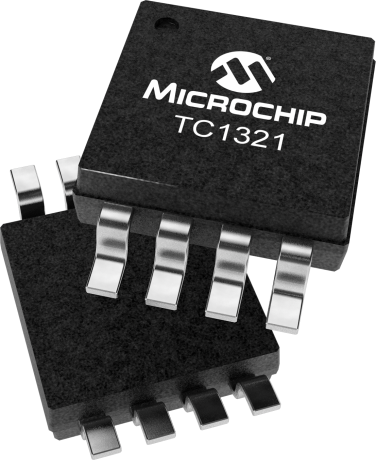

Product Images
