Single-channel MOSFET driver with buffered or inverting logic, featuring a 500mA maximum output current and 4.5V to 16V supply voltage range. This integrated circuit offers a 40ns propagation delay and 35ns fall time, packaged in a through-hole PDIP-8 configuration. Operating from -40°C to 85°C, it boasts a 730mW power dissipation and is RoHS compliant.
PackagePDIP
Current1mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC1410NEPA technical specifications.
General
| Package/Case | PDIP |
| Channel Type | Single |
| Fall Time | 35ns |
| Height | 4.06mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 730mW |
| Max Supply Current | 1mA |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 2 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 730mW |
| Propagation Delay | 40ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Turn-On Delay Time | 45ps |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC1410NEPA Datasheet
Download the complete datasheet for Microchip TC1410NEPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

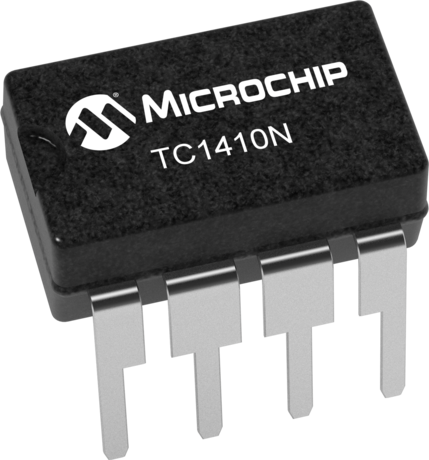

Product Images
