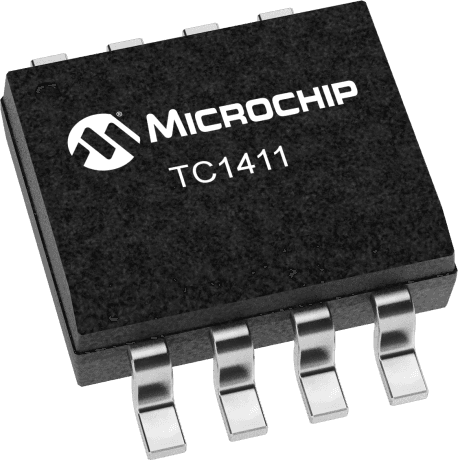

The TC1411COA713 is a single gate driver IC from Microchip, packaged in a SOIC-8 package. It operates within a temperature range of 0°C to 70°C and is RoHS compliant. The device can supply up to 1A of current and has a maximum power dissipation of 470mW. The propagation delay is 40ns, and the fall time is 35ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC1411COA713 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Fall Time | 35ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Power Dissipation | 470mW |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Power Dissipation | 470mW |
| Propagation Delay | 40ns |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| RoHS | Compliant |
