1-channel, 3.5-bit dual-slope Analog-to-Digital Converter (ADC) with serial access. Features a single-ended input and unipolar polarity, operating with a dual supply voltage range of 4.5V to 8V, typically 5V. This surface mount SOIC-24 packaged IC offers a sampling rate of 25S/s and a conversion rate of 0.025KS/s. It operates within a temperature range of 0°C to 70°C and has a maximum power dissipation of 940mW.
PackageSOIC
MountingSurface Mount
PolarityUnipolar
Power940mW
Quick Jump:
Technical Specifications
Microchip TC14433COG technical specifications.
General
| Package/Case | SOIC |
| Conversion Rate | 0.025KS/s |
| Dual Supply Voltage | 5V |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 940W |
| Mount | Surface Mount |
| Number of Analog Inputs | 1 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.8mA |
| Operating Supply Voltage | 8V |
| Output Voltage | 5V |
| Package Quantity | 32 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Dissipation | 940mW |
| Resolution | 3.5b |
| RoHS Compliant | Yes |
| Sampling Rate | 25S/s |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC14433COG Datasheet
Download the complete datasheet for Microchip TC14433COG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

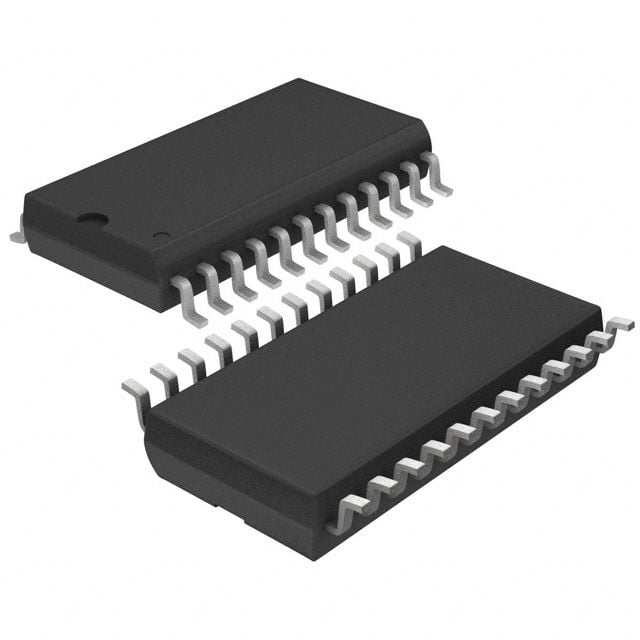

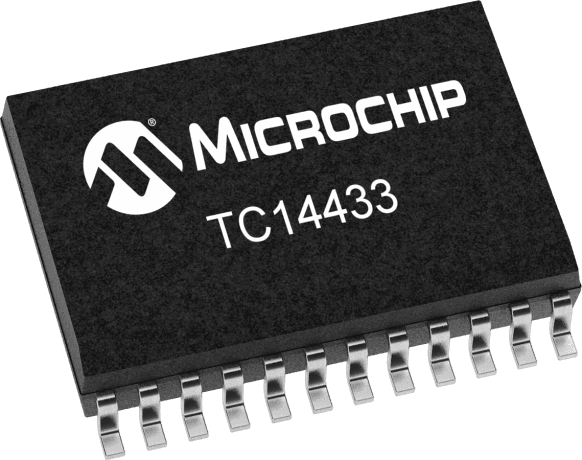

Product Images
