Single-channel power supply management IC in a SOT-223-3 surface mount package. Features include a 4.25V to 4.5V reset threshold, 4.5V to 5.5V operating supply voltage, and 200µA maximum supply current. This lead-free, RoHS compliant component offers active-low reset with a 500ms timeout and includes a watchdog timer. Operating temperature range is -40°C to 85°C.
PackageSOT-223-3
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC32MEDB technical specifications.
General
| Package/Case | SOT-223-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.5V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 200uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 200uA |
| Overvoltage Threshold | 4.5V |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Quiescent Current | 50uA |
| Reset | Active Low |
| Reset Timeout | 500ms |
| RoHS Compliant | Yes |
| Series | ECONOMONITOR™ |
| Supply Current | 200uA |
| Threshold Voltage | 4.375V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC32MEDB Datasheet
Download the complete datasheet for Microchip TC32MEDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

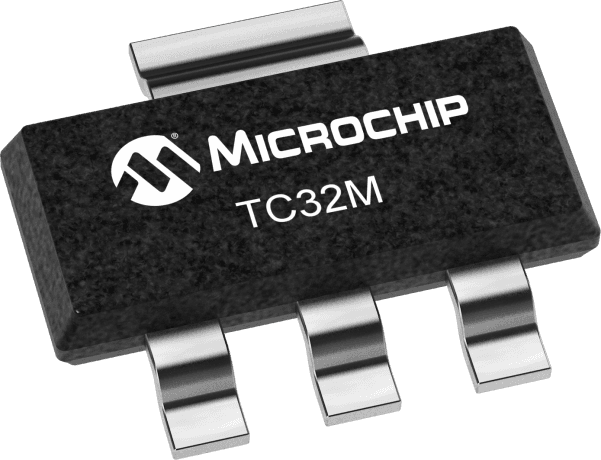

Product Images
