Dual-channel MOSFET driver with independent channels, delivering up to 1.5A maximum output current. Features a 75ns propagation delay and 30ns fall time, operating from a 4.5V to 18V supply voltage. This through-hole component is housed in a PDIP-8 plastic package, with a maximum power dissipation of 730mW and an operating temperature range of 0°C to 70°C. RoHS compliant and lead-free.
PackagePDIP
Current8mA
MountingThrough Hole
Power730mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip TC428CPA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip TC428CPA technical specifications.
General
| Package/Case | PDIP |
| Channel Type | Independent |
| Fall Time | 30ns |
| Height | 4.06mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 730mW |
| Max Supply Current | 8mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 16V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 730mW |
| Propagation Delay | 75ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC428CPA Datasheet
Download the complete datasheet for Microchip TC428CPA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

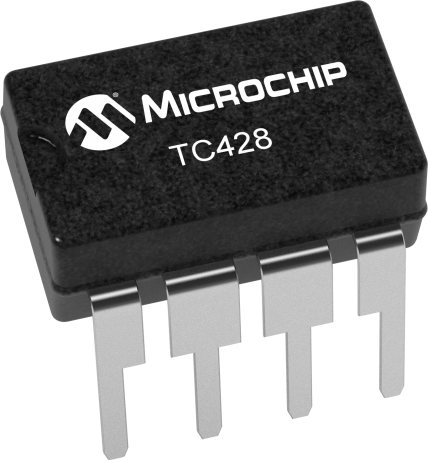

Product Images
