PackageDFN
Current150uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4420VMF technical specifications.
General
Package/Case
DFN
Channel Type
Single
Fall Time
25ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
1
Number of Outputs
1
Output Current
6A
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
150uA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4420VMF Datasheet
Download the complete datasheet for Microchip TC4420VMF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

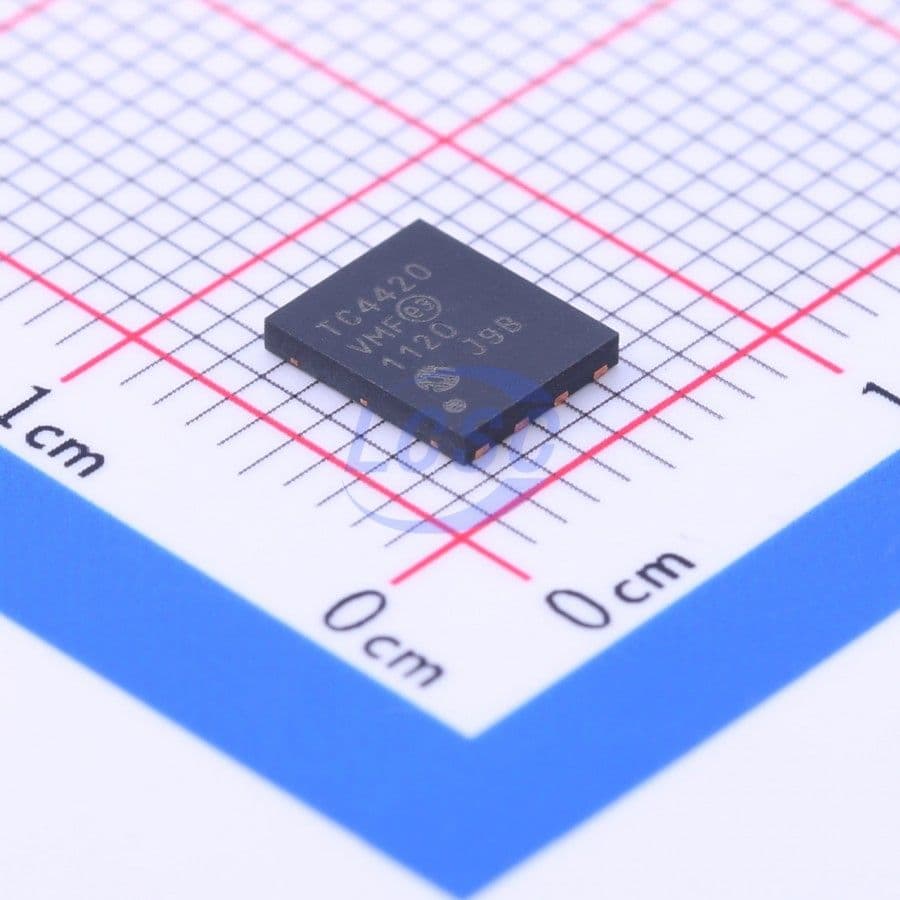

Product Images
