Single-output, low-side, inverting gate driver with a maximum output current of 9A. Features a 60ns propagation delay and 75ns fall time. Operates from a 4.5V to 18V supply voltage, with a typical operating voltage of 15V. Packaged in a TO-220 through-hole mount, this RoHS compliant component has a maximum power dissipation of 1.6W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC4421CAT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

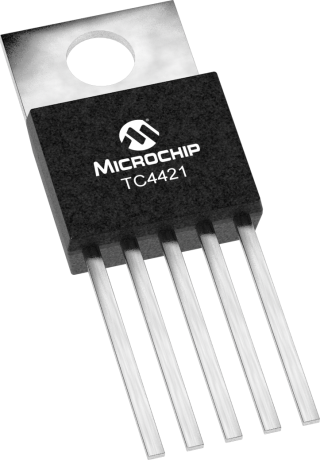

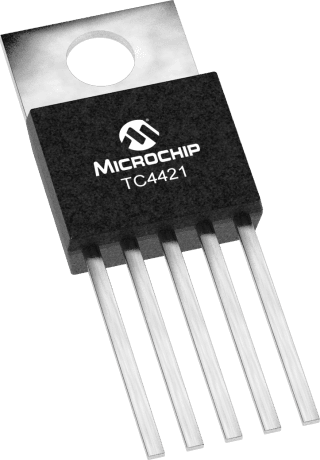

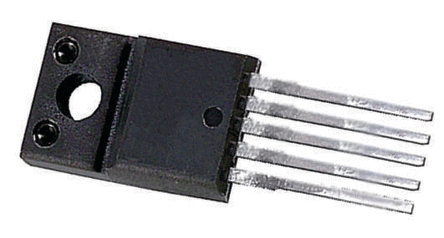

Microchip TC4421CAT technical specifications.
| Package/Case | TO-220 |
| Fall Time | 75ns |
| Height | 9.02mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 9A |
| Max Power Dissipation | 1.6W |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.6W |
| Propagation Delay | 60ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Turn-On Delay Time | 60ns |
| Width | 4.83mm |
| RoHS | Compliant |
