PackagePDIP
Current1.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications

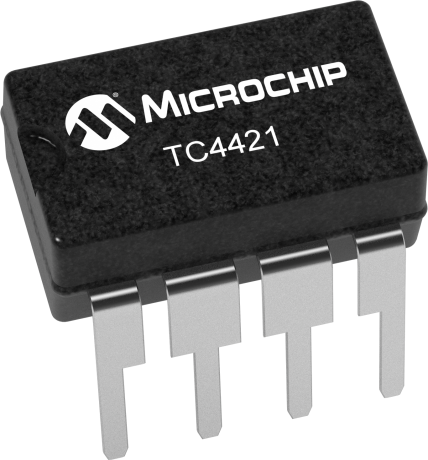

Microchip TC4421EPA technical specifications.
General
Package/Case
PDIP
Channel Type
Single
Fall Time
75ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Power Dissipation
730mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Output Current
375mA
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
60ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.5mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4421EPA Datasheet
Download the complete datasheet for Microchip TC4421EPA to view detailed technical specifications.
