Microchip
TC4421MJA
9 A BUF OR INV BASED MOSFET DRIVER, CDIP8, 0.300 INCH, LEAD FREE, MS-030, CERDIP-8
PackageCDIP
Current200uA
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4421MJA technical specifications.
General
Package/Case
CDIP
Fall Time
60ns
Height
0.16inch
Input Bias Current
10uA
Lead Free
Contains Lead
Length
0.4inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
9A
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Number of Drivers
1
Number of Outputs
1
Output Current
2A
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
60ns
RoHS Compliant
Yes
Supply Current
200uA
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4421MJA Datasheet
Download the complete datasheet for Microchip TC4421MJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

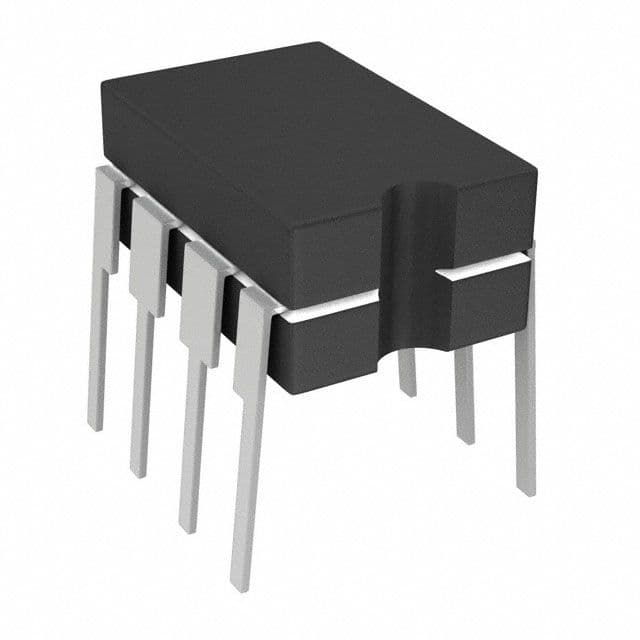

Product Images
