The TC4423AVMF is a dual independent gate driver IC with a maximum output current of 4.5A and a maximum supply voltage of 18V. It operates over a temperature range of -40°C to 125°C and is packaged in a lead-free DFN-8 package. The device is RoHS compliant and features a propagation delay of 48ns and a fall time of 21ns. It is suitable for surface mount applications and is available in a rail/tube packaging configuration with 60 units per package.
PackageDFN
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4423AVMF technical specifications.
General
| Package/Case | DFN |
| Channel Type | Independent |
| Fall Time | 21ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4.5A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Propagation Delay | 48ns |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4423AVMF Datasheet
Download the complete datasheet for Microchip TC4423AVMF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

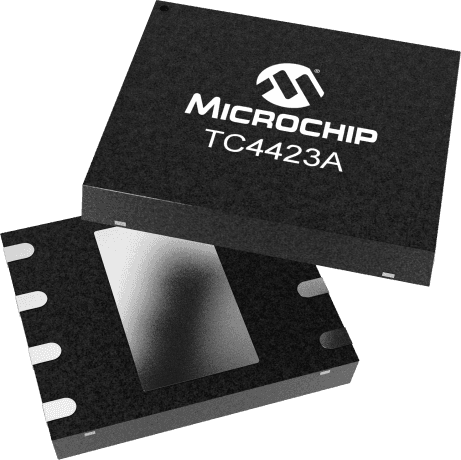

Product Images
