Microchip
TC4423COE
3 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO16, 0.300 INCH, PLASTIC, MS-013, SOIC-16
PackageSOIC W
Current2.5mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC4423COE technical specifications.
General
Package/Case
SOIC W
Fall Time
35ns
Height
2.31mm
Length
10.3mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Power Dissipation
470mW
Max Supply Current
2.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Package Quantity
47
Packaging
Rail/Tube
Power Dissipation
470mW
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
2.5mA
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4423COE Datasheet
Download the complete datasheet for Microchip TC4423COE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

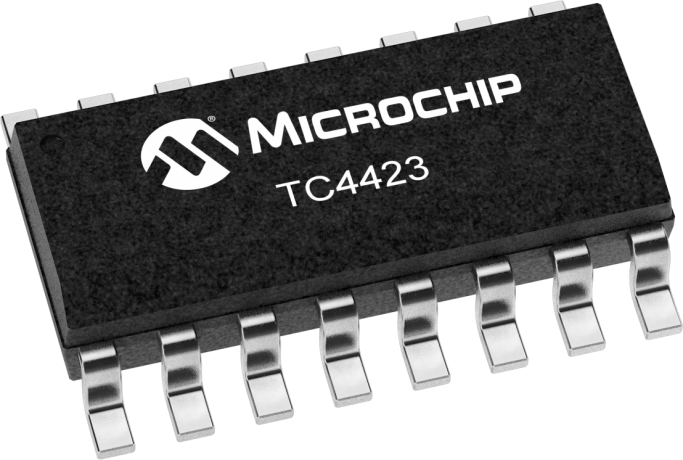

Product Images
