Dual-channel MOSFET driver with independent control, delivering up to 3A maximum output current. Features a 75ns propagation delay and 35ns fall time, operating from a 4.5V to 18V supply voltage. This through-hole component is housed in a lead-free PDIP-8 package with a maximum power dissipation of 730mW.
PackagePDIP
Current2.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4423CPA technical specifications.
General
Package/Case
PDIP
Channel Type
Independent
Fall Time
35ns
Height
4.06mm
Input Bias Current
10uA
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Power Dissipation
730mW
Max Supply Current
2.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
75ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.5mA
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4423CPA Datasheet
Download the complete datasheet for Microchip TC4423CPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

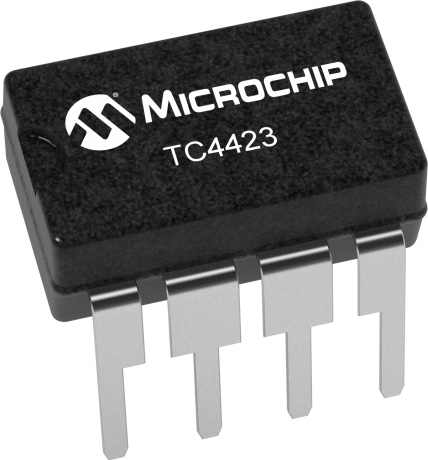

Product Images
