Microchip
TC4424COE
3 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO16, 0.300 INCH, PLASTIC, MS-013, SOIC-16
PackageSOIC
Current2.5mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC4424COE technical specifications.
General
Package/Case
SOIC
Channel Type
Independent
Fall Time
35ns
Height
2.31mm
Lead Free
Lead Free
Length
10.3mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Power Dissipation
470mW
Max Supply Current
2.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Package Quantity
47
Packaging
Rail/Tube
Power Dissipation
470mW
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
2.5mA
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4424COE Datasheet
Download the complete datasheet for Microchip TC4424COE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

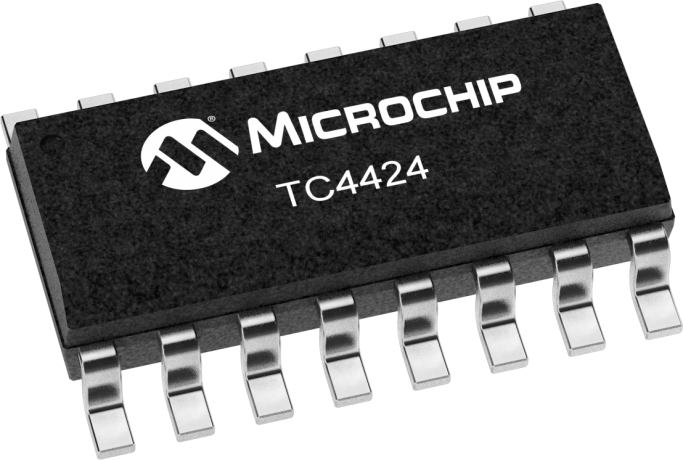

Product Images
