The TC4425AVMF713 is a dual gate driver IC from Microchip, featuring two independent channels with a maximum output current of 4.5A. It operates within a temperature range of -40°C to 125°C and has a propagation delay of 48ns. The device is packaged in a lead-free DFN-8 package and is RoHS compliant. It can supply a maximum current of 2mA and has a maximum supply voltage of 18V. The IC is designed for surface mount applications and is available in tape and reel packaging.
PackageDFN
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4425AVMF713 technical specifications.
General
| Package/Case | DFN |
| Channel Type | Independent |
| Fall Time | 21ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4.5A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Propagation Delay | 48ns |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4425AVMF713 Datasheet
Download the complete datasheet for Microchip TC4425AVMF713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

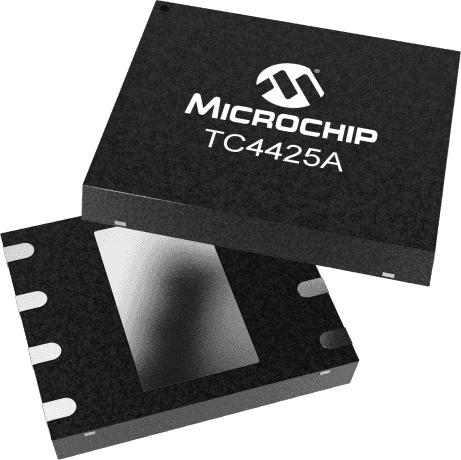

Product Images
