PackagePDIP
Current4.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4426AEPA technical specifications.
General
Package/Case
PDIP
Fall Time
35ns
Height
4.06mm
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
730mW
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
35ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4.5mA
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4426AEPA Datasheet
Download the complete datasheet for Microchip TC4426AEPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

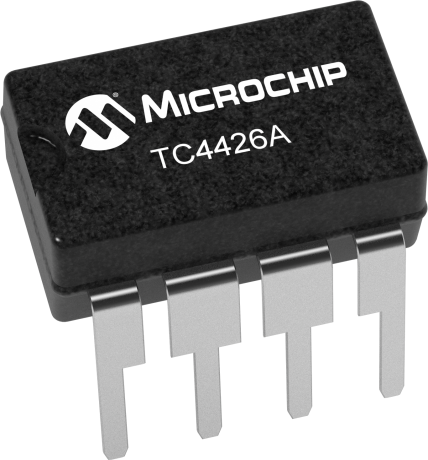

Product Images
