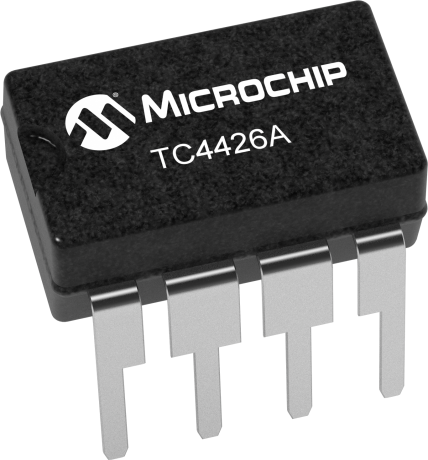

The TC4426AVPA is a dual independent gate driver from Microchip, packaged in a PDIP with 60 units per rail/tube. It operates over a temperature range of -40°C to 125°C and can handle a maximum output current of 1.5A. The device is RoHS compliant and lead free, with a maximum power dissipation of 730mW. Each driver has a propagation delay of 35ns and a fall time of 19ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TC4426AVPA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Channel Type | Independent |
| Fall Time | 19ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 730mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 730mW |
| Propagation Delay | 35ns |
| RoHS Compliant | Yes |
| Supply Current | 4.5mA |
| RoHS | Compliant |
