Microchip
TC4426MJA
1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, CDIP8, 0.300 INCH, MS-030, CERDIP-8
PackageCDIP
Current4.5mA
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4426MJA technical specifications.
General
Package/Case
CDIP
Fall Time
30ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
1.5A
Max Power Dissipation
800mW
Max Supply Current
4.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Number of Drivers
2
Number of Outputs
2
Output Current
1.5A
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
50ns
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4426MJA Datasheet
Download the complete datasheet for Microchip TC4426MJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

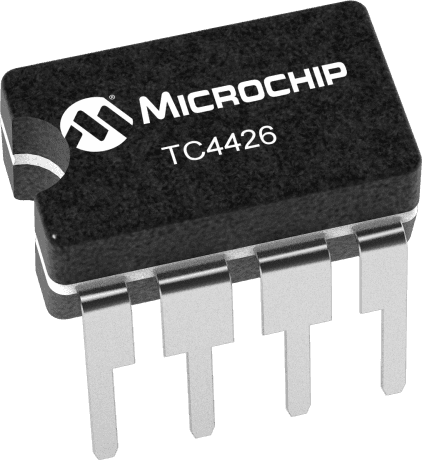

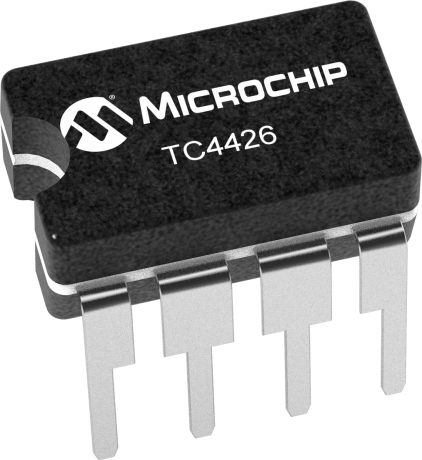

Product Images
