Dual low-side gate driver with 1.5A maximum output current, featuring independent channels and a 35ns propagation delay. This surface-mount integrated circuit operates from a 4.5V to 18V supply voltage and offers a 27ns fall time. Designed for automotive applications, it is RoHS compliant and packaged in an 8-pin SOIC for tape and reel distribution.
PackageSOIC
Current1mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC4427ACOA713 technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Independent |
| Fall Time | 27ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 470mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Power Dissipation | 470mW |
| Propagation Delay | 35ns |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4427ACOA713 Datasheet
Download the complete datasheet for Microchip TC4427ACOA713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

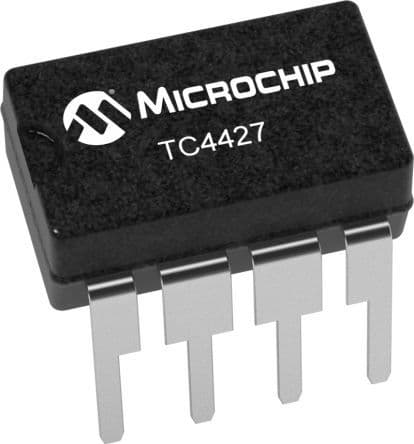

Product Images
