Microchip
TC4427AEMF
1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8, 6 X 5 MM, LEAD FREE, PLASTIC, MO-220, DFN-8
PackageDFN
Current4.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4427AEMF technical specifications.
General
Package/Case
DFN
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
35ns
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4427AEMF Datasheet
Download the complete datasheet for Microchip TC4427AEMF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

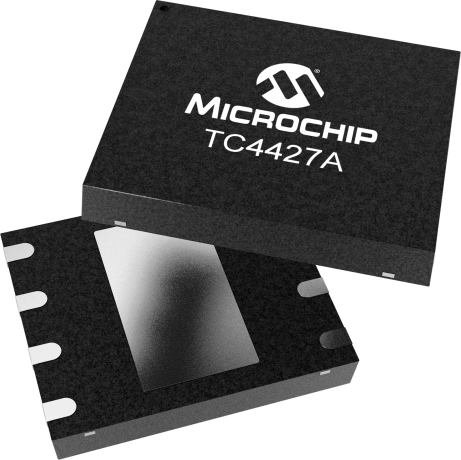

Product Images
