PackageSOIC
Current1mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications

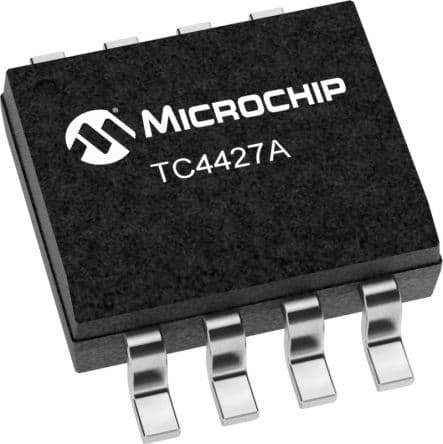

Microchip TC4427AEOA713 technical specifications.
General
Package/Case
SOIC
Channel Type
Independent
Fall Time
25ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
470mW
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
1.5A
Package Quantity
3300
Packaging
Tape and Reel
Power Dissipation
470mW
Propagation Delay
35ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
1mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4427AEOA713 Datasheet
Download the complete datasheet for Microchip TC4427AEOA713 to view detailed technical specifications.
