Microchip
TC4427AVOA713
1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8
PackageSOIC
Current4.5mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Microchip TC4427AVOA713 technical specifications.
General
Package/Case
SOIC
Channel Type
Independent
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
470mW
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Package Quantity
3300
Packaging
Tape and Reel
Power Dissipation
470mW
Propagation Delay
35ns
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4427AVOA713 Datasheet
Download the complete datasheet for Microchip TC4427AVOA713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

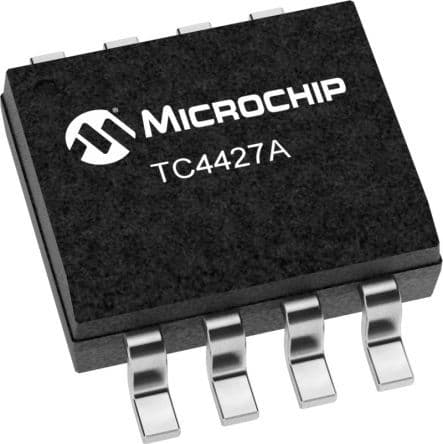

Product Images
