Dual-channel, low-side gate driver IC with independent channels, capable of delivering 1.5A output current. Features a maximum output voltage of 18V and a propagation delay of 50ns, with a fall time of 30ns. Operates within a supply voltage range of 4.5V to 18V and offers a maximum power dissipation of 730mW. Packaged in a lead-free, 8-pin PDIP for through-hole mounting.
PackagePDIP
Current4.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4427CPA technical specifications.
General
Package/Case
PDIP
Channel Type
Independent
Fall Time
30ns
Height
4.06mm
Input Bias Current
10uA
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
17.975V
Max Power Dissipation
730mW
Max Supply Current
4.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
2
Number of Drivers
2
Number of Outputs
2
On-State Resistance
12R
Output Current
1.5A
Output Voltage
18V
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
50ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4.5mA
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4427CPA Datasheet
Download the complete datasheet for Microchip TC4427CPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

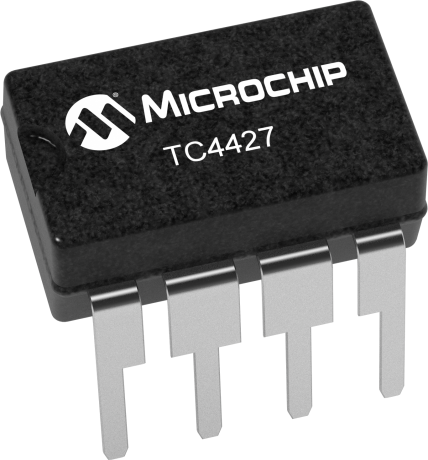

Product Images
