Dual-output, low-side gate driver IC featuring 1.5A maximum output current and 50ns propagation delay. This semiconductor component operates from a 4.5V to 18V supply voltage, with a maximum supply current of 4.5mA. Designed for through-hole mounting in an 8-pin PDIP package, it offers a fall time of 30ns and a maximum power dissipation of 730mW. The component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackagePDIP
Current4.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4427EPA technical specifications.
General
Package/Case
PDIP
Fall Time
30ns
Height
0.195inch
Input Bias Current
10uA
Lead Free
Lead Free
Length
0.4inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
730mW
Max Supply Current
4.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
On-State Resistance
12R
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
50ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4.5mA
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4427EPA Datasheet
Download the complete datasheet for Microchip TC4427EPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

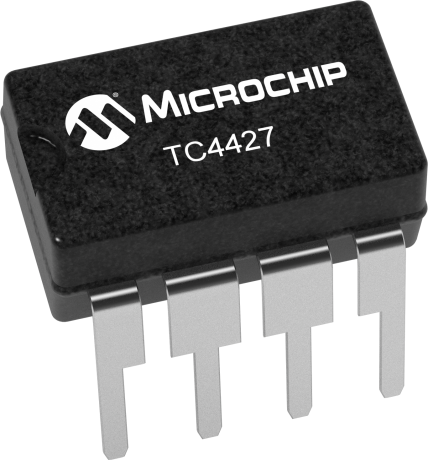

Product Images
