Microchip
TC4428AEJA
1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, CDIP8, 0.300 INCH, CERAMIC, MS-030, DIP-8
PackageCDIP
Current4.5mA
MountingThrough Hole
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4428AEJA technical specifications.
General
Package/Case
CDIP
Channel Type
Independent
Fall Time
30ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
800mW
Max Supply Current
4.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
50ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4428AEJA Datasheet
Download the complete datasheet for Microchip TC4428AEJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

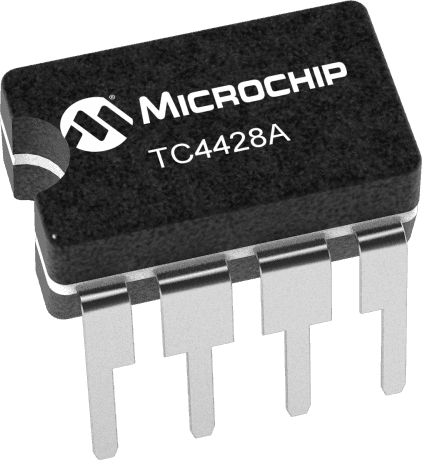

Product Images
